*Please specify front and rear anti roll bar bush diameters in the notes section with your order. If no diameter is specified we will order these in the smallest diameter and they can be drilled out to size by the customer*

Reference: 216266B

Product name: Full suspension bush kit

Fits to:

• Lexus GS I (91-97) S140


• Toyota Aristo I (91-97) S140

Include:

• 2x 211977A: Front lower arm bush SPORT
• 2x 211978A: Front lower radius arm to chassis bush SPORT
• 2x 211979B: Front anti roll bar bush
• 4x 211912A: Front upper arm bush SPORT


• 2x 211628B: Rear link arm inner bush 40mm
  or
• 2x 211924B: Rear link arm inner bush 35mm


• 2x 211629B: Rear trailing arm rear bush
• 2x 211630B: Rear track control arm inner bush
• 2x 211632A: Rear track control arm outer bush 40,5mm SPORT
• 2x 211694B: Rear trailing arm front bush 46mm
• 4x 211633B: Rear upper wishbone bush
• 2x 211923B: Rear anti roll bar bush
• 2x 211792B: Rear subframe - front bush
• 2x 211793B: Rear subframe - rear bush
• 2x 211794B: Rear diff mount - front bush
• 1x 211795B: Rear diff mount - rear bush
• 1x 211796B: Rear diff mount - rear bush

Diagrams:

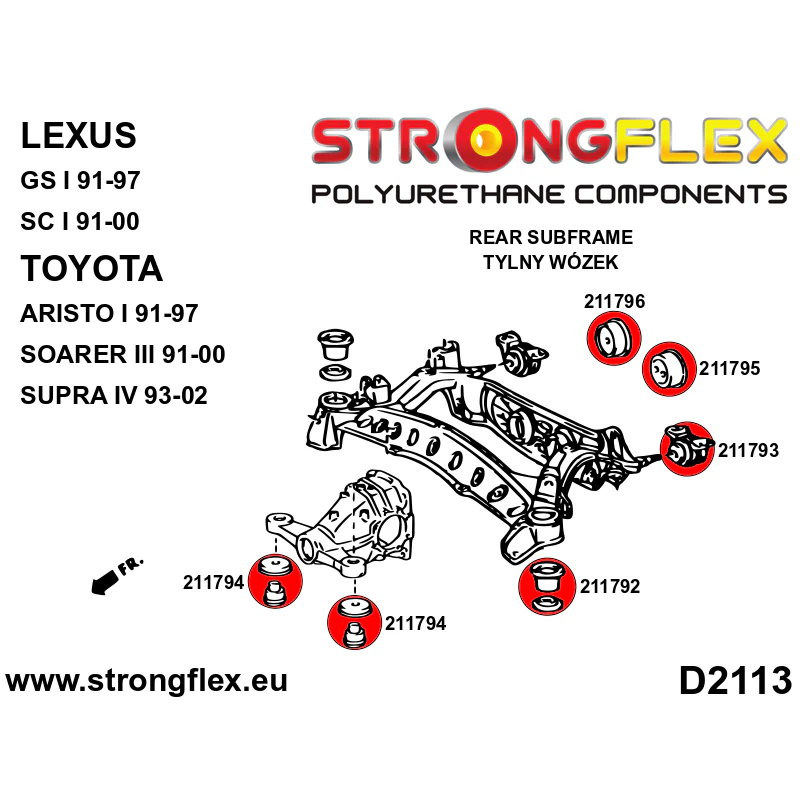

• D2113
• D2146

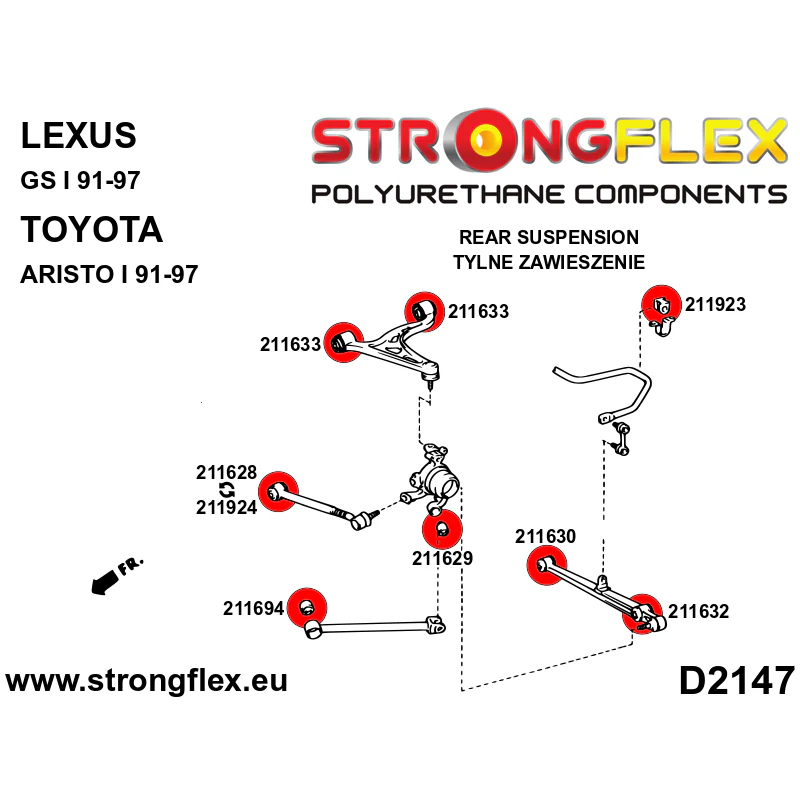

• D2147

Notes

• Rear Link Bushing:
  For models manufactured from 1993 to 1995, select bushings 211628 (diameter 40mm).
  For models manufactured from 1996 to 1997, select bushings 211924 (diameter 35mm).

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 34

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
