KIT ID: 286216B

Name: Full suspension bush kit R32

Fit:

Nissan Skyline R32

Include:

• 2x 281400B: Front anti roll bar bush
  or
• 2x 281401B: Front anti roll bar bush GT-R

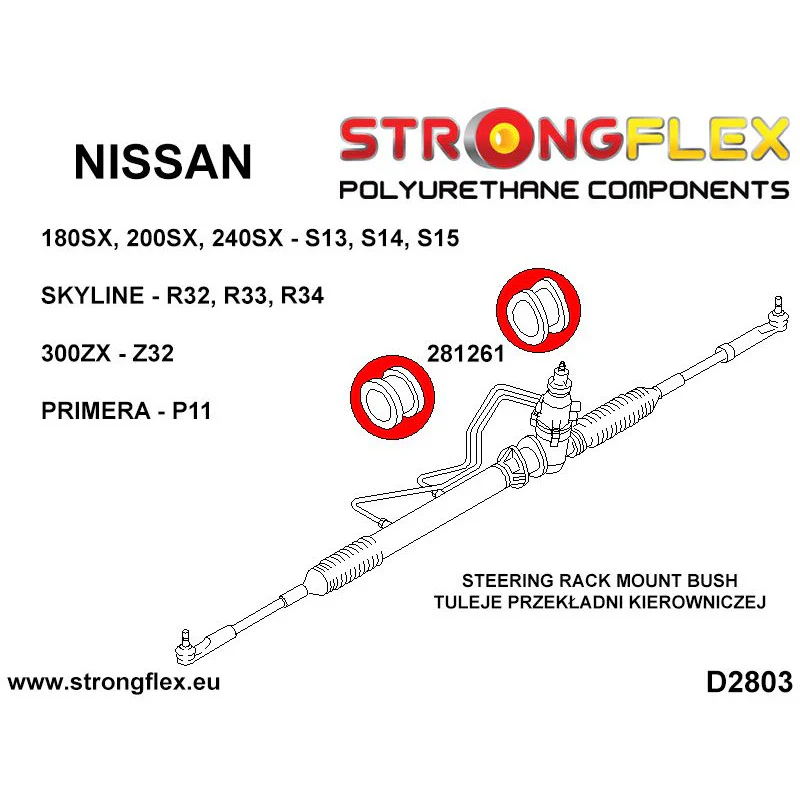

• 1x 286234B: Steering gear bushing kit
• 2x 281957A: Front upper arm - upper bush SPORT
• 2x 281958A: Front upper arm - lower bush SPORT


• 2x 281262B: Front lower radius arm to chassis bush
  or
• 2x 281788B: Front lower radius arm to chassis bush GT-R


• 12x 281218A: Rear arm bush SPORT
• 4x 281267A: Rear lower control arm bush SPORT
• 2x 281268B: Rear anti roll bar bush
• 4x 281269B: Rear anti roll bar link bush
• 4x 281271B: Rear beam mounting bush AWD
• 2x 281849B: Rear diff mount - front bush
• 1x 281850B: Rear diff mount - rear bush

Pcs/prod: 39

Required/car: 1

Diagrams:

D2821

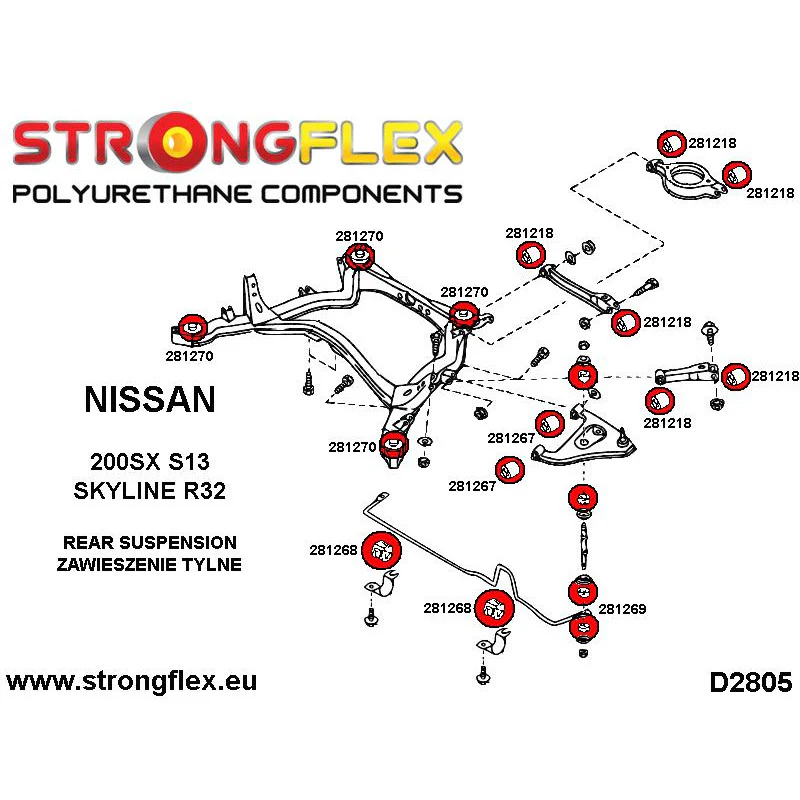

D2805



NOTE!
There are two different bushes of front wishbone: 34mm (281263) and 38mm (281397).
Before placing order order, please check bushes in your model.



To install the polyurethane bushing you must burn the old rubber bush.
Do not remove the outer metal sleeve, it must be reused for this bushing!

NOTE!

Bush 281788 works only with GT-R 4x4 models.
Length bush is 83mm. Check size before placing order.

Hardness: 80/90ShA

Material: POLYURETHANE (PUR/PU)

To every product we add grease!
